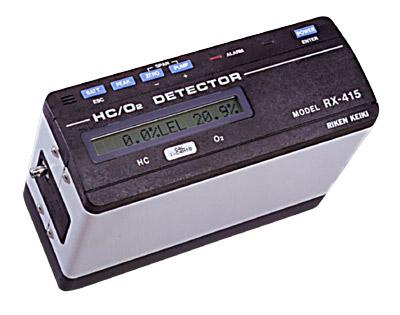

This model has two versions and is a combination type portable HC/O2 or CH4/O2 gas detector with an Infrared (NDIR) type sensor and galvanic cell type sensor. These sensors provide accurate detection of HC/O2 (HC version) or CH4/O2 (CH4 version) levels even in N2 and other inert environments. The measuring ranges are 0-100%LEL/0-100 vol% for HC or CH4 and 0-25 vol% for )2 respectively with automatic ranging. The RX-415 has explosion proof and intrinsically safe construction so that it can be used safely in any environment.

(click image to enlarge)

Quick Overview

Available to measure from higher concentration (vol%) to lower concentration (%LEL) Explosion proof (Detector: Explosion proof, other electrical circuit and pump, intrinsically safe design) Available to measure HC/O2, CH4/O2 in N2, inert gas and air with a reliable NDIR method

Interested in this item or want more information?
Hours of Operation: Monday - Friday 6:30am - 5pm
Phone: 713-688-2582
Email: office@mbs-tools.com

Can't find what you want? Give us a call and we can help you find it.

Details

	RX-415 (HC version)		RX-415 (CH4 version)
Gas Detected	HC	Oxygen (O2)	HC	Oxygen (O2)
Detection Principle	NDIR (Non-Dispersive infrared)	Galvanic cell	NDIR (Non-Dispersive infrared)	Galvanic cell
Detection Range (Increments)	0~100%LEL (0.5%LEL/digit) 0-100vol% (0.5%vol/digit) (auto range)	0-25 vol% (0.1%vol/digit)	0~100%LEL (0.5%LEL/digit) 0-100vol% (0.5%vol/digit) (auto range)	0-25 vol% (0.1%vol/digit)
Sampling Method	Built in sample pump
Response Time	Within 30 seconds (T90)
Ambient Temp/ Humidity	-10°C ~ + 40°C(14 to 104°F), below 90%RH, non-condensing
Continuous Operation	Approx. 40 hours (no alarm or light, at 20ºC)
Power Source	4 “C” Alkaline dry cell batteries or optional Ni-Cad
Dimensions & Weight	Approx. 80 (H) x 200 (W) x 142 (D) mm (3.1” H x 7.9” W x 5.6" D), approx. 2 kg (4.4 lbs)
Standard Accessories	Filter tube with flow monitor Connection tube (green) Spiral sampling tube Gas sampling probe Carrying case with shoulder strap Alkaline battery (4 "C" size) Operation manual
Optional Accessories	Sampling tube (30M) Gas sampling bag Ni-Cad battery charger

Specifications subject to change without notice.

Additional Information

Manufacturer: RKI Instruments
