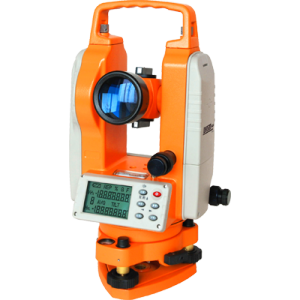

Two Second Electronic Theodolite

Model: 40-6932

Johnson Level & Tool Co.

Two Second Electronic Theodolite
(click image to enlarge)
Quick Overview
  • Image: Erect

  • Magnification: 30X

  • Aperture: 45mm (1.7")

  • Resolution: 3"

  • Angle of View: 1° 30"

  • Shortest Distance: 1.4m (4.5')

  • Stadia Constant: 100

  • Overall Length: 6.18" (157mm)

  • Angle Measurement: Incremental

  • Minimal Reading: 1", 2", 5", optional

  • Angle Measurement Unit: 360°, 400 gon, 6400 mil, optional

  • Accuracy: 2"(40-6932) and 5" (40-6935)

  • Tubular Vial: 30"/2mm

  • Circular Vial: 8"/2mm

  • Tilt Sensor: Upright angle automatic compensation

  • Compensation Range: + 3'

  • Imaging: Erect

  • Magnification: 3X

  • Focusing Range: 0.5m

  • Field Angle: 5°

  • Type: LCD with double side

  • Joint (one): RS232

  • Battery: 5 "AA" alkaline batteries or rechargeable NiMH battery pack

  • Operating Voltage: 6V DC

  • Operating Time: 16 hours

  • Temperature Range: -20° C - +40° C (-4°F to +104° F)

  • Outside Dimension: 6.29" x 5.90" x 12.99" (160 x 150 x 330mm)

  • Weight: 10.14 lbs (4.6kg)
Interested in this item or want more information?
Hours of Operation: Monday - Friday 6:30am - 5pm
Phone: 713-688-2582
Email: office@mbs-tools.com

Can't find what you want? Give us a call and we can help you find it.
Details
  • Two second or five second angular accuracy - accurate enough for any construction job

  • Vertical axis compensation - tilt sensor provides the highest level of accuracy and be turned on or off depending upon job requirements

  • Dual LCD with large characters - easy to see, angle readings, eliminate errors and reduce eye fatigue

  • Backlit LCD and telescope reticle - allows work in low light conditions including indoor and extended hours near dawn and dusk

  • Simple six button keypad - quick set-ups and simple operation with low operator learning curve

  • Large suite of programmable settings - provide multiple operations for various users and job requirements including zero position of vertical angle

  • 90° audible notification - for quick turning and set out of right angles

  • Instant conversion of vertical angles to percent of grade - convenient for slope work and when used in conjunction with pipe work

  • NiMH rechargeable battery pack and charger lower operating cost with reusable batteries

  • Alkaline battery pack standard - provides back-up and eliminated down time if the charge is lost in the middle of a job
    • Additional Information
    Manufacturer: Johnson Level & Tool Co.
