The D1200-3 series aluminum extension ladders are Compact, 3 section ladders that have a duty rating of 225 pounds and interlocking side rails. The Traction-Tred D rungs are slip resistant. Spring-loaded locks operate smoothly for easy operation. Shoes rest flat or are held in spur position with Shu-Lok feature. Mar-resistant end caps help protect the surface ladder is leaning against. Exclusive Alflo rung joint means Twist-Proof performance every time

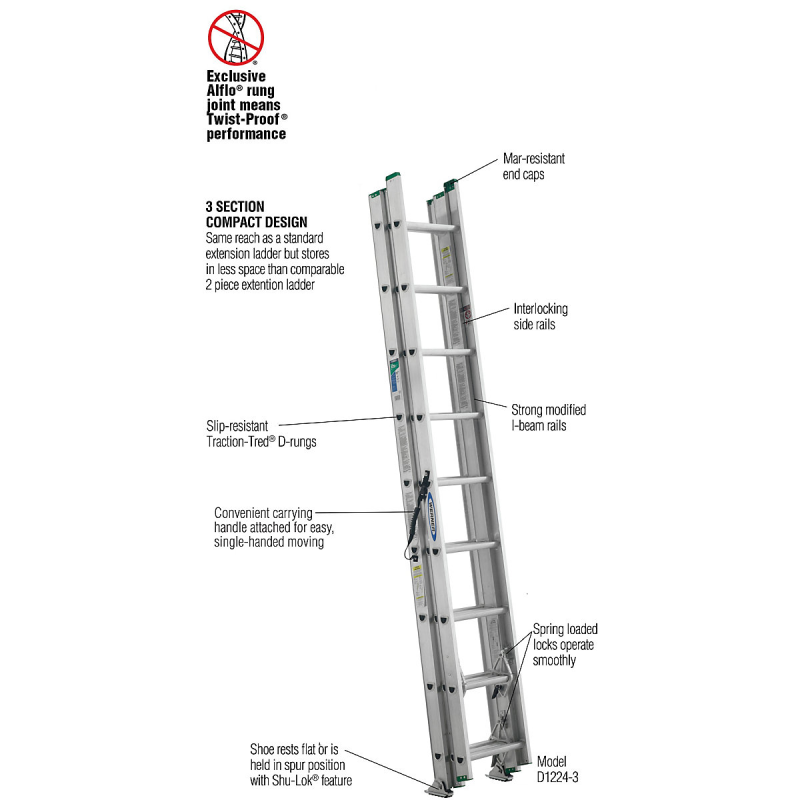

(click image to enlarge)

Quick Overview

Features include:

Compact design retracts to 6'3", 2' shorter than a conventional, 2 section, 16' extension ladder
Same usable length as a conventional, 2 section, 16' ladder
Easy to maneuver around corners and through doors
Versatile - Use indoors or outdoors
More overlapping rung locations for improved foot comfort
Convenient carry handle
Exclusive ALFLO rung joint means TWIST-PROOF performance
1.75" Slip-resistant Traction-Tred D-rungs
Durable extruded rung locks are spring loaded to operate smoothly
Mar-resistant end caps
Heavy duty modified I-beam side rails
Durable shoe rests flat on slip resistent pad or is held in spur position with Shu-Lok feature

Interested in this item or want more information?
Hours of Operation: Monday - Friday 6:30am - 5pm
Phone: 713-688-2582
Email: office@mbs-tools.com

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 3"

Flange Dimension: 1"

Rung Dimension: 1-3/4"

Fly Width: 15-1/4"

Base Width: 17-3/8" outside rails

Specifications

Size: 16'

Reach Height: 15'

Max Working Length: 13'

Load Capacity: 225 lbs.

Type: Type II Duty Rating

Performance Rating: 2 Star

Material: Aluminum

Rung Type: D

Foot Material: Slip-resistant pad

Number of Sections: 3

Certifications: ANSI A14.2 (2007); OSHA; Special Purpose

Approx. Cu. Ft. Per Unit: 5.92

Approx. Shipping Wt. Lbs.: 26.5

Additional D1200-3 Series Models:

Model No.	Size	Reach Height	Max Working Length	Foot Material	Certifications	Approx. Cu. Ft. Per Unit
D1216-3	16'	15'	13'	Slip-resistant pad	ANSI A14.2 (2007); OSHA; Special Purpose	5.92
D1224-3	24'	23'	21'	Slip-Resistant pad	ANSI A14.2 (2007); OSHA	8.7

Additional Information

Manufacturer: Werner Co.
