The D1500-1 series are one-section aluminum straight ladders with a duty rating of 300 pounds. The exclusive ALFLO rung joint means TWIST-PROOF performance every time. The side rails are extra heavy duty I-beam rails and the aluminum D Traction-Tred rungs are slip resistant. The rugged shoe rests flat or is held in spur position with the Shu-Lok feature for use on hard or penetrable surfaced.

(click image to enlarge)

Quick Overview

Features include:

Exclusive ALFLO rung joint means TWIST-PROOF performance
1-3/4" Slip-resistant Traction-Tred D-rungs
Heavy Duty extruded rung locks are spring loaded to operate smoothly
Extra heavy duty I-beam rails
Rugged spring loaded locks operate smoothly

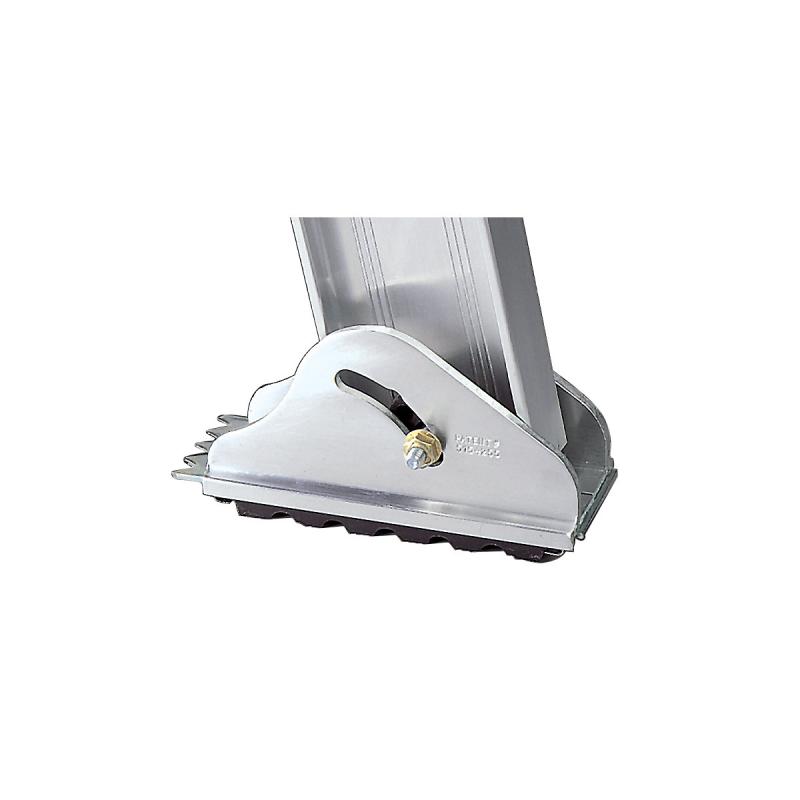

Rugged shoe rests flat or is held in spur position with Shu-Lok feature
Stacked rail design provides increased rung width on fly section
Mar-resistant end caps

Interested in this item or want more information?
Hours of Operation: Monday - Friday 6:30am - 5pm
Phone: 713-688-2582
Email: office@mbs-tools.com

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 3"

Flange Dimension: 1-1/8"

Rung Dimension: 1-3/4"

Base Width: 18-1/8" outside rails

Specifications

Size: 10'

Reach Height: 13'

Load Capacity: 300 lbs.

Type: Type IA Duty Rating

Performance Rating: 4 Star

Material: Aluminum

Rung Type: D

Foot Material: Slip-resistant pad

Number of Sections: 1

Certifications: ANSI A14.2 (2007); OSHA

Approx. Cu. Ft. Per Unit: 4.5

Approx. Shipping Wt. Lbs.: 17.5

Additional D1500-1 Series Models:

Model No.	Size	Reach Height	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
D1508-1	8'	11'	3.6	14.5
D1510-1	10'	13'	4.5	17.5
D1512-1	12'	15'	5.4	21.5
D1514-1	14'	17'	6.2	27
D1516-1	16'	18'	7.1	32.5
D1518-1	18'	20'	8	38.5
D1520-1	20'	22'	8.9	43.5

Additional Information

Manufacturer: Werner Co.
