The 9500-1 All-Fiberglass Straight ladders are ideal in highly-corrosive environments. Where most fiberglass extension ladders have aluminum rungs, the 5900-1 series has unique box-beam rails that are connected with a fiberglass pultruded rung. Nylon plugs interlock the entire rung-to-rail connections. Thick rubber treads and spur plates provide a solid foundation at the foot. These ladders bear a duty rating of 300 pounds.

(click image to enlarge)

Quick Overview

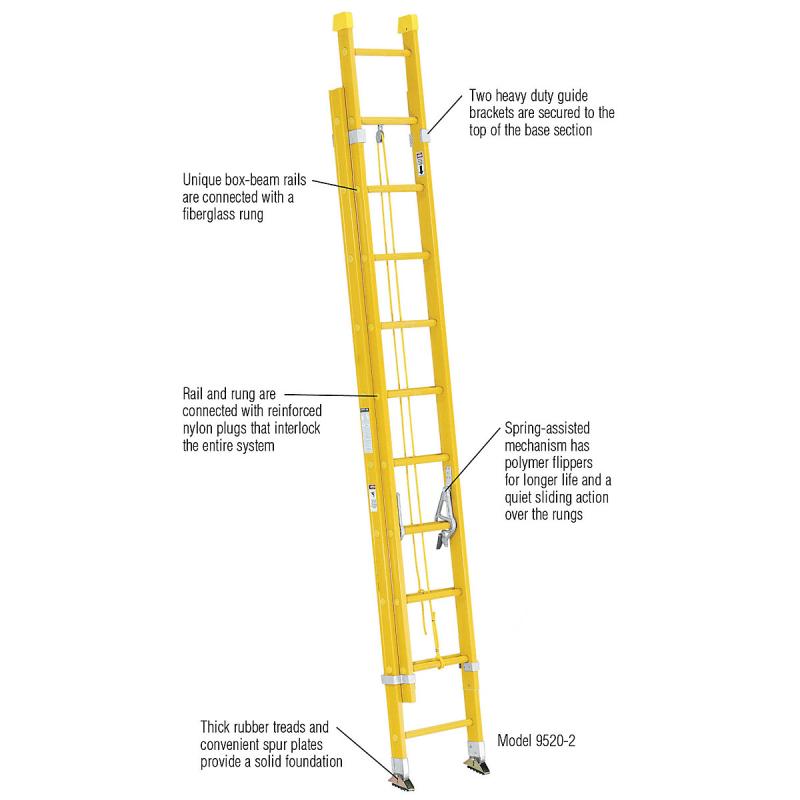

Features include:

All Fiberglass rungs and rails ideal for harsh environments
Unique box-beam rails are connected with a fiberglass rung
Rail and rung are connected with reinforced nylon plugs that interlock the entire system
Thick rubber treads and convenient spur plates provide a solid foundation
Two heavy duty guide brackets are secured to the top of the base section

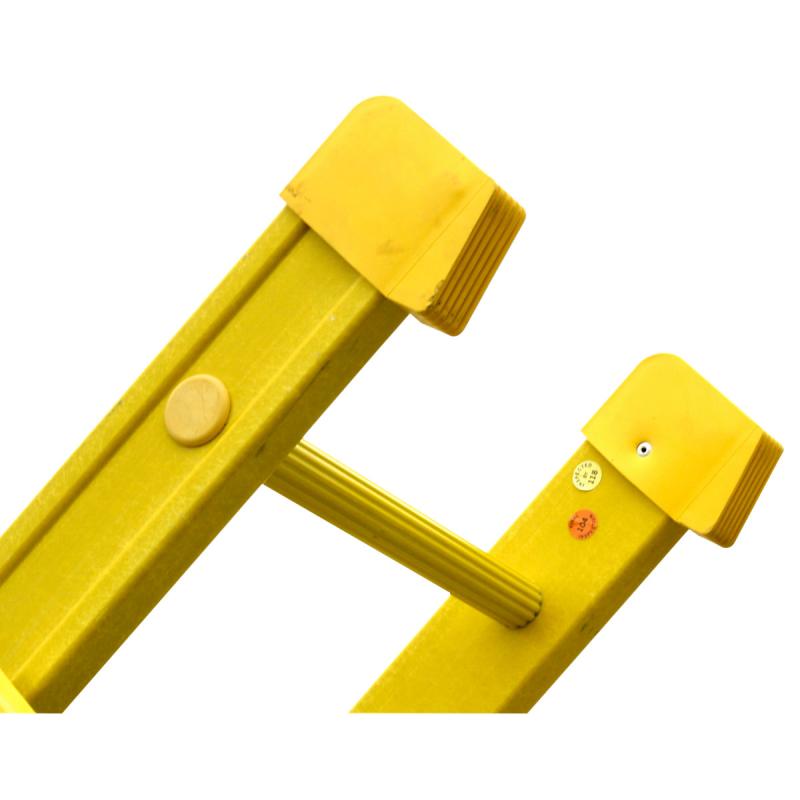

Protective molded endcaps mounted at the top of the ladder

Interested in this item or want more information?
Hours of Operation: Monday - Friday 6:30am - 5pm
Phone: 713-688-2582
Email: office@mbs-tools.com

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 3-1/4"

Flange Dimension: 1-3/16"

Rung Dimension: 1-1/4"

Fly Width: 15-1/2"

Base Width: 19" outside shoes

Specifications

Size: 12'

Reach Height: 15'

Load Capacity: 300 lbs.

Type: Type IA Duty Rating

Performance Rating: 4 Star

Material: Fiberglass

Rung Type: Round

Foot Material: Slip-resistant pad

Number of Sections: 1

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 8

Approx. Shipping Wt. Lbs.: 26

Additional 9500-1 Series Models:

Model No.	Size	Reach Height	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
9508-1	8'	11'	5.5	18
9510-1	10'	13'	6.8	22
9512-1	12'	15'	8	26
9514-1	14'	17'	9.4	30
9516-1	16'	18'	10.7	34
9518-1	18'	20'	11.2	38
9520-1	20'	22'	12.5	42

Additional Information

Manufacturer: Werner Co.
