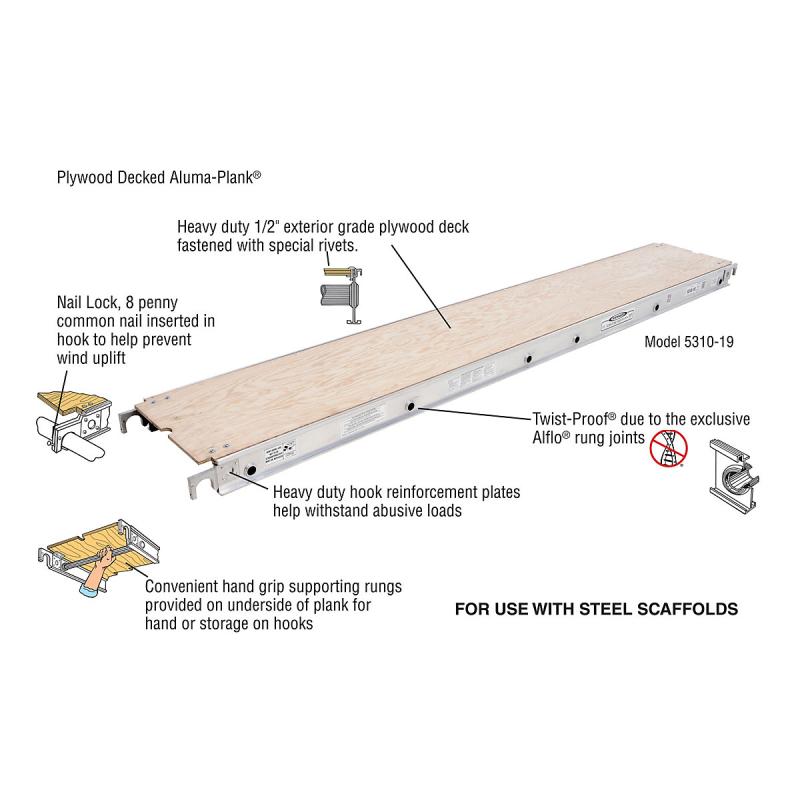

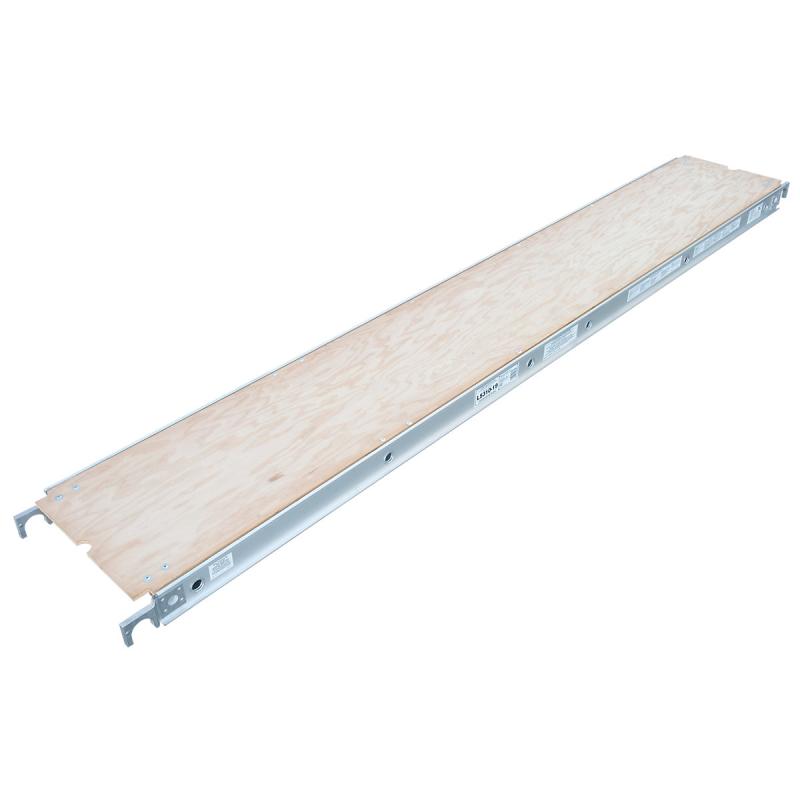

5300 series Plywood Decked ALUMA-PLANK for use with steel scaffolds. Duty rating is either 50 pounds/square foot or 75 pounds/square foot depending on model. Available in 19 1/16" or 24" widths.

(click image to enlarge)

Quick Overview

Features:

For Use With Steel Scaffolds
19-1/16" wide, 10' long plywood decked plank

Interested in this item or want more information?
Hours of Operation: Monday - Friday 6:30am - 5pm
Phone: 713-688-2582
Email: office@mbs-tools.com

Can't find what you want? Give us a call and we can help you find it.

Details

5300 series Plywood Decked ALUMA-PLANK for use with steel scaffolds. Duty rating is either 50 pounds/square foot or 75 pounds/square foot depending on model. Available in 19 1/16" or 24" widths.

Specifications

Side Rail Length: 10'
Approx. Width: 19-1/16"
Duty Rating/Sq Ft: 50 lbs.
Material: Aluminum rails, plywood deck
Certifications: ANSI A10.8 (2001); OSHA
Approx. Cu. Ft. Per Unit: 5.25
Approx. Shipping Wt. Lbs.: 39

Dimensions

Approx. Width: 19-1/16"
Side Rail Depth: 4"

Additional MT Series Models

Model No.	Side Rail Length	Approx. Width	Duty Rating/Sq Ft	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
5307-19	7'	19-1/16"	75 lbs.	2.91	27.0
5307-24	7'	24"	75 lbs.	3.63	32.0
5308-19	8'	19-1/16"	75 lbs.	3.31	38
5310-19	10'	19-1/16"	75 lbs.	4.11	47
5310-24	10'	24"	75 lbs.	5.13	53
L5308-19	8'	19-1/16"	50 lbs.	4.2	30
L5310-19	10'	19-1/16"	50 lbs.	5.25	39

Additional Information

Manufacturer: Werner Co.
