Gates has developed two sizes of adjustable form braces. 7’-11’ (part #177007) and 11’-19’ (part #177010) are the standard lengths available. The top and base plate are identical with multiple holes available for attachment. Stakes, 1/4" fasteners, inserts for the bottom are accommodated. The top attachment is achieved with various hardware available for attachment to Lok Fast Column Clamps, Lok’n Square Column Clamps, or #3-#5-#9 Anchor Lock gangs.
Workmen extending and setting form brace.

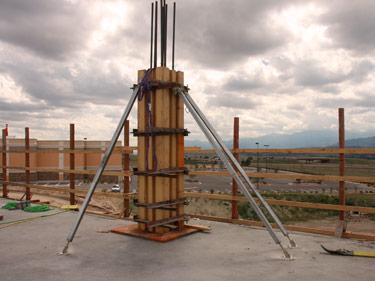

Extended & ready for concrete.
Close view of a column setup with 2 braces for one side and 1 brace on the other.
Close-up view of top plate & lok fast adapter.
Close up of the Base Plate, which accommodates stakes, 1/4" fasteners, or bolted inserts.
Column form with braces in the reduced position, ready to be flown into place.
Braces in reduced position.
Job site with column flying with braces attached in the reduced dimension.
